BT600 truck-mounted water well riling rig is truck-mounted rotary drilling rig. The drilling rig adopts the chassis of SINOTRUK 8 x 4 special vehicle.
The diesel engine, double hydraulic winches, mud pump, rotary table, mast, kelly are all installed on the chassis.
It equipped with independent 132KW/2200rpm diesel engine for drilling, and install generator set (MF)to provide night lighting or welding maintenance at the construction site.
According to the local geological conditions, BT600 drilling rig can drill with mud, DTH hammer, air foam and hydro-hammer.
It is highly adaptable to the stratum structure and can be used for drilling in clay, sand, highly weathered rock, bedrock, basalt and other strata.

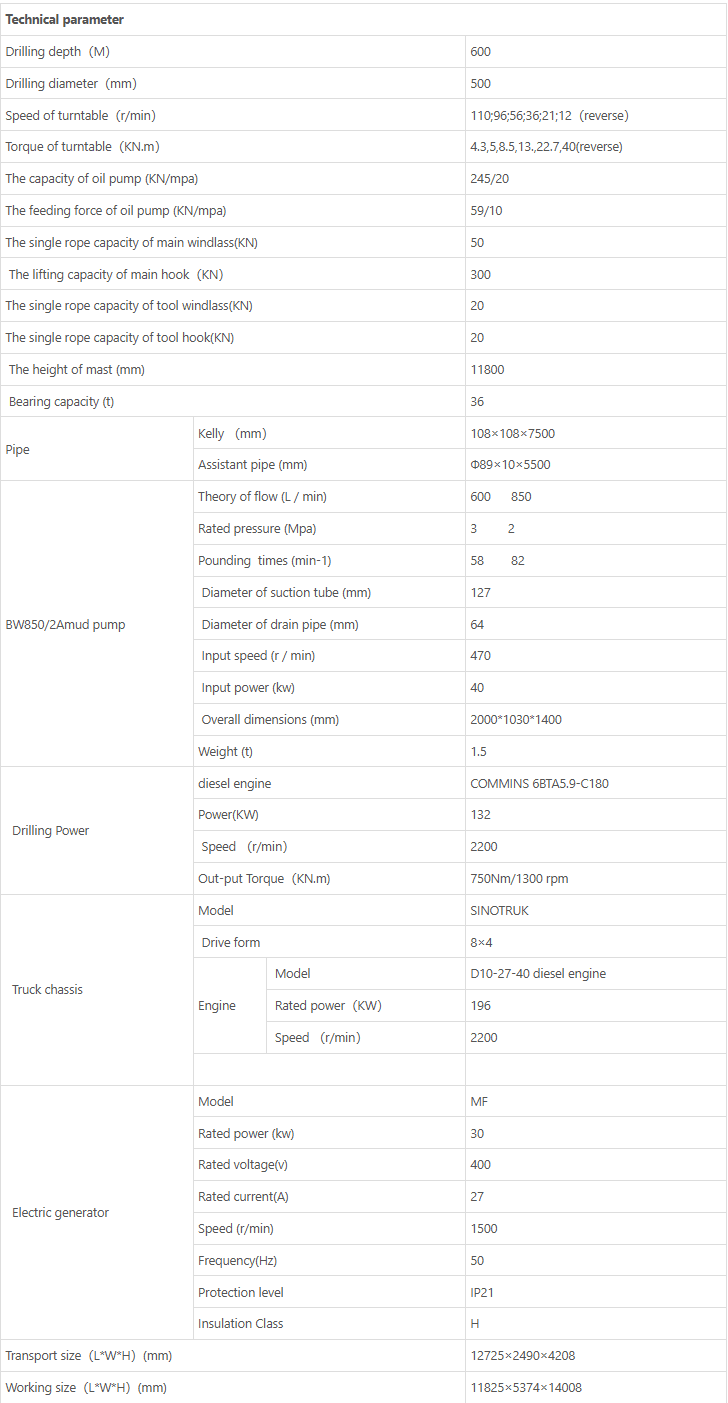

Truck-mounted Water Well Drilling Rig

This rig has very compact structure, the engine of chassis is adopted D10.27-40 diesel engine, the power is 196kw(strong power) The drilling rig has independent diesel engine (COMMINS 6BTA5.9-C180), the power is 132kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.

This rig is design principle is an advanced hydraulic cylinder for drilling, stepless lift, it can be achieve
